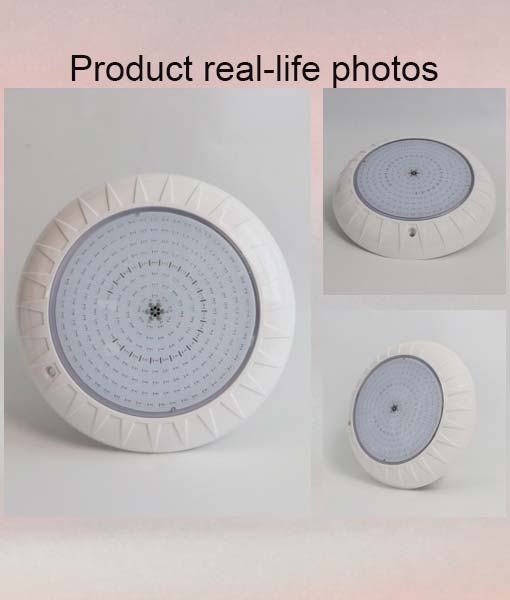

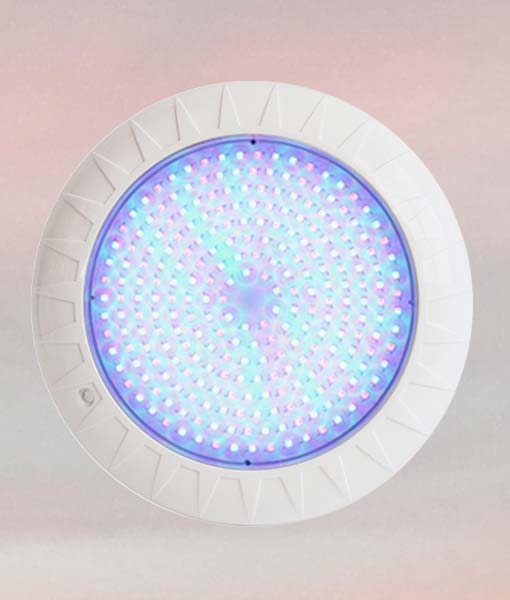

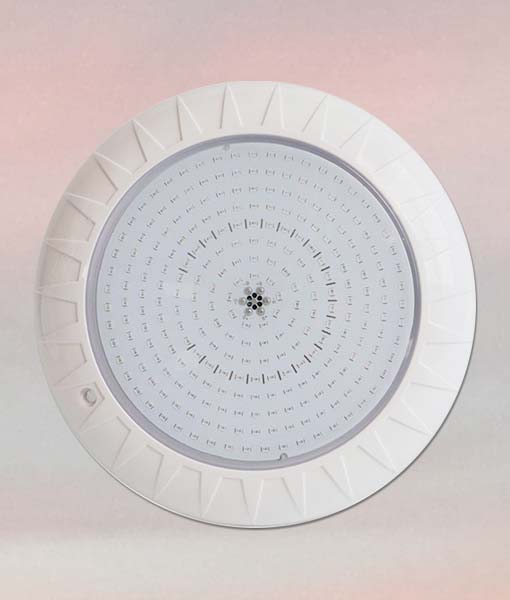

Wall Mounted Swimming Led Pool Light,IP68 Underwater Light

|  Detail Information

Model Number	HTP56S252P1R	Power:	18/24/35/42W
Material:	Anti UV PC, Fully Resin Filled	Color:	RGB/RGBW/CW/WW/R/G/B
Size:	177*25mm	Input Voltage(V):	AC/DC 12V/24V
Control Method:	Remote/Switch Control/Tuya/Wifi	IP Rating:	IP68
Warranty:	2-Year	Working Temperature(℃):	(-20C°) -( 40C°)
Service:	OEM/ODM

|  Feature

Ful resin filled, 100% IP68 waterproof

Portable small design in 9.4 ” diameter

Works for concrete pool

Nicheless—directly install on the wall, easy to install

|  Description

The lamp body is made of PC material, which is tight and durable, and has good corrosion resistance and crack resistance.The light-transmitting cover is made of transparent material withextremely high strength, which has good light transmission,The use of high brightness LED lamp beads, LED lamp beads, high brightness, low consumption can produce uniform light, soft light, long life, energy saving and environmental protection

DC12V low voltage safety no electric shock 12V low voltage power supply, human contact will not have the risk of electric shock, rest assured。

Thickened PC material, resin seal design, good waterproof performance, with good corrosion resistance and pressure resistance.

Super waterproof design, resin filling process waterproof, silicone sealing waterproof, waterproof connector triple protection, safer use.

High brightness import, chip high brightness import chip, high brightness, low energy consumption, low light decay, uniform light, soft light, energy saving and environmental protection.

The bottom of wall-mounted installation is made of PBT, screw seal waterproof design, wall-mounted installation is convenient and fast

Suitable for a variety of scenarios, indoor swimming pool, outdoor swimming pool, fountain lighting and other outdoor lighting.

|  INSTALLATION

1. Remove the support from the lamp Step

2. Fasten the support to the wall of the pool with screws Step

3. Use screws to secure the lamp to the support Step

4. Connect the cable to the 12V or 24V converter (The lamp cannot directly connect to the 110V or 220V power supply). A waterproof transformer or junction box is strongly recommended
