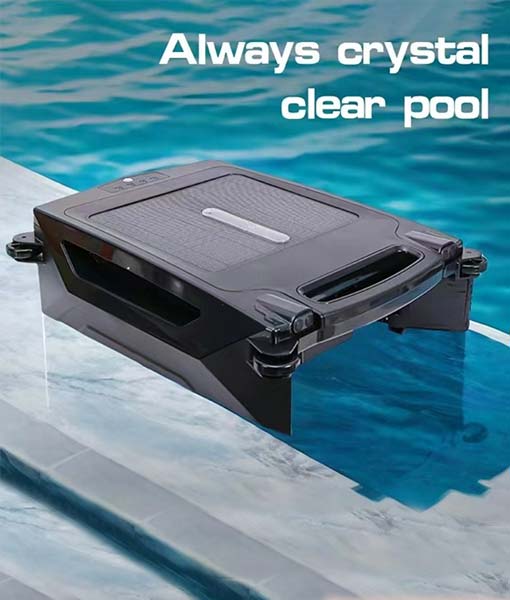

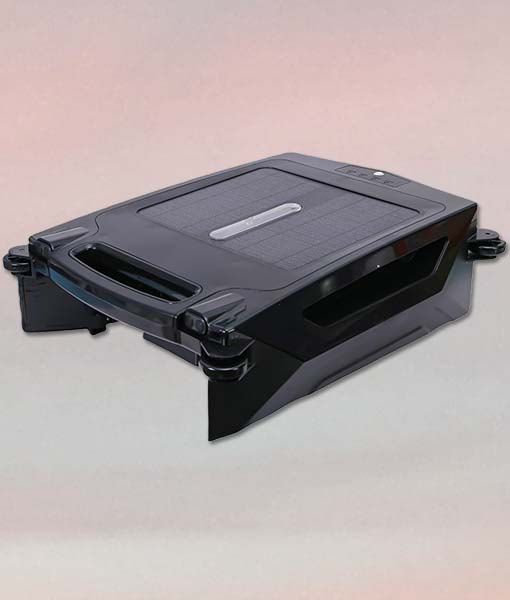

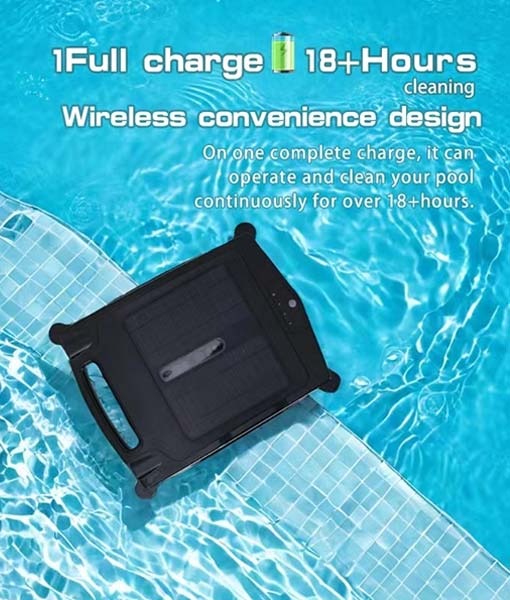

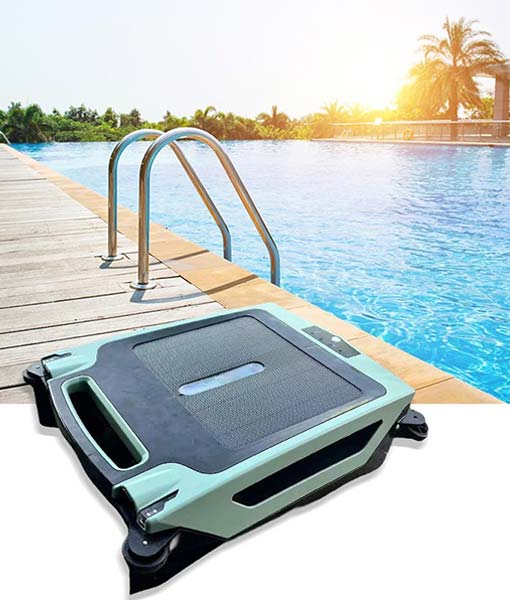

Solar Charging Battery Swimming Pool Robot Cleaner

| Feature

This product solar pool cleaning robot uses the combination of lithium battery and solar charging to power the machine, while retaining the external charger fast charging mode, so that the machine can have good endurance and emergency ability; The machine’s propulsion and rolling motor are brushless motors, which have high working efficiency and long service life. The machine has automatic obstacle avoidance and escape functions on the water surface, and has certain maneuverability and wall-sticking effect, so that all corners of the pool surface can be cleaned well.

| Founction

1. Adapter charging prompt function

When the ⑩ adapter charging port starts to charge, when the battery is not satisfied, the adapter charging prompt light will flash;

When the battery is fully charged, the adapter charging prompt light will be steady on and beep for one minute;

2. Power switch function

Press and hold the function button for 2-3 seconds. The indicator, motor, buzzer and other hardware will self-check, indicating that the cleaner enters the normal working state.

In the startup state, long press the function button for 2-3 seconds to shut down the cleaner;

3. Cleaning function

The left and right propulsion motor and the rolling brush will start, wherein the rolling brush will roll in a clockwise direction;

⑧ The left and right headlights of the machine;

4. Change the working mode

Press the function button (2) to switch between the quick cleaning mode and the normal cleaning mode, and the corresponding prompt light will also switch; Power on for normal cleaning mode;

| Product Parameter

Filtering Capability	860 SQ/FT（80㎡）	Rated Voltage	11.1V
Solar Panel Power	10W	Power	8W
Filtering Density	400μm	Cruising Ability	More than 6 hours
Movement Speed	5-10 meters/minute	IP Code	IPX7
Rated Input Voltage of the charger	100-240VAC	Rated Input Frequency of the Charger	50/60HZ
Rated Output Voltage of the Charger	12.6VDC	Rated Output Current of the Charger	1.0A
Motor Type	brushless	Battery Capacity	2500mAh
Charge Time	2-3 hours	Storage capacity	4.1L
Size	535(U)*465(W)*180(H)mm	Weight	4.8kg



---
